Till now we have seen the basics of RS232 communication, the function of level converter and the internal USART of AVR micro. After understanding the USART of AVR we have also written a easy to use function to initialize the USART. That was the first step to use RS232. Now we will see how we can actually send/receive data via rs232. As this tutorial is intended for those who are never used USART we will keep the things simple so as to just concentrate on the "USART" part. Of course after you are comfortable with usart you can make it more usable my using interrupt driven mechanism rather than "polling" the usart.
So lets get started! In this section we will make two functions :-
- USARTReadChar() : To read the data (char) from the USART buffer.
- USARTWriteChar(): To write a given data (char) to the USART.
This two functions will demonstrate the use of USART in the most basic and simplest way. After that you can easily write functions that can write strings to USART.
Reading From The USART : USARTReadChar() Function.
This function will help you read data from the USART. For example if you use your PC to send data to your micro the data is automatically received by the USART of AVR and put in a buffer and bit in a register (UCSRA) is also set to indicate that data is available in buffer. Its now your duty to read this data from the register and process it, otherwise if new data comes in the previous one will be lost. So the funda is that wait until the RXC bit (bit no 7) in UCSRA is SET and then read the UDR register of the USART.
(See the full description of USART registers)
char USARTReadChar()
{
//Wait untill a data is available
while(!(UCSRA & (1<<RXC)))
{
//Do nothing
}
//Now USART has got data from host
//and is available is buffer
return UDR;
}
Writing to USART : USARTWriteChar()
This function will help you write a given character data to the USART. Actually we write to the buffer of USART and the rest is done by USART, that means it automatically sends the data over RS232 line. One thing we need to keep in mind is that before writing to USART buffer we must first check that the buffer is free or not. It its not we simply wait until it is free. If its not free it means that USART is still busy sending some other data and once it finishes it will take the new data from buffer and start sending it.
Please not that the data held in the buffer is not the current data which the USART is busy sending. USART reads data from the buffer to its shift register which it starts sending and thus the buffer is free for your data. Every time the USART gets it data from buffer and thus making it empty it notifies this to the CPU by telling "USART Data Register Ran Empty" (UDRE) . It does so by setting a bit (UDRE bit no 5) in UCSRA register.
So in our function we first wait until this bit is set (by the USART ), once this is set we are sure that buffer is empty and we can write new data to it.
(See the full description of USART registers)
void USARTWriteChar(char data)
{
//Wait until the transmitter is ready
while(!(UCSRA & (1<<UDRE)))
{
//Do nothing
}
//Now write the data to USART buffer
UDR=data;
}
Note: Actually their are two separate buffers, one for transmitter and one for receiver. But they share common address. The trick is that all "writes" goes to the Transmitter’s buffer while any "read" you performs comes from the receiver’s buffer.
That means if we read UDR we are reading from receivers buffer and when we are writing to UDR we are writing to transmitters buffer.
UDR=some_data; //Goes to transmitter
some_data=UDR; //Data comes from receiver
(See the full description of USART registers)
Sample program to use AVR USART
The following program makes use of the two functions we developed. This program simply waits for data to become available and then echoes it back via transmitter but with little modification. For example if you send "A" to it, it will send you back "[A]" that is input data but surrounded by square bracket. This program is enough to test the USART yet easy to understand.
/*
A simple program to demonstrate the use of USART of AVR micro
*************************************************************
See: www.eXtremeElectronics.co.in for more info
Author : Avinash Gupta
E-Mail: me@avinashgupta.com
Date : 29 Dec 2008
Hardware:
ATmega8 @ 16MHz
Suitable level converter on RX/TX line
Connected to PC via RS232
PC Software : Hyper terminal @ 19200 baud
No Parity,1 Stop Bit,
Flow Control = NONE
*/
#include <avr/io.h>
#include <inttypes.h>
//This function is used to initialize the USART
//at a given UBRR value
void USARTInit(uint16_t ubrr_value)
{
//Set Baud rate
UBRRL = ubrr_value;
UBRRH = (ubrr_value>>8);
/*Set Frame Format
>> Asynchronous mode
>> No Parity
>> 1 StopBit
>> char size 8
*/
UCSRC=(1<<URSEL)|(3<<UCSZ0);
//Enable The receiver and transmitter
UCSRB=(1<<RXEN)|(1<<TXEN);
}
//This function is used to read the available data
//from USART. This function will wait untill data is
//available.
char USARTReadChar()
{
//Wait untill a data is available
while(!(UCSRA & (1<<RXC)))
{
//Do nothing
}
//Now USART has got data from host
//and is available is buffer
return UDR;
}
//This fuction writes the given "data" to
//the USART which then transmit it via TX line
void USARTWriteChar(char data)
{
//Wait untill the transmitter is ready
while(!(UCSRA & (1<<UDRE)))
{
//Do nothing
}
//Now write the data to USART buffer
UDR=data;
}
void main()
{
//This DEMO program will demonstrate the use of simple
//function for using the USART for data communication
//Varriable Declaration
char data;
/*First Initialize the USART with baud rate = 19200bps
for Baud rate = 19200bps
UBRR value = 51
*/
USARTInit(51); //UBRR = 51
//Loop forever
while(1)
{
//Read data
data=USARTReadChar();
/* Now send the same data but but surround it in
square bracket. For example if user sent 'a' our
system will echo back '[a]'.
*/
USARTWriteChar('[');
USARTWriteChar(data);
USARTWriteChar(']');
}
}
Downloads
- Hex file for ATmega8 ready to burn !
- Atmel Studio 6 Project File
- Proteus Simulation File, for super quick testing!
Running the USART Demo
You can run the above program in a ATmega8, ATmega16, ATmega32 cpu running at 16MHz without any modification. If you are using different clock frequency you have to change the UBRR value that we are passing to USARTInit() function. See previous tutorial for calculating UBRR value. AVR running the USART demo program can be interface to PC using following three ways.
-
Connect to a Physical COM Port.
If you are lucky and own a really old PC then you may find a Physical COM port on your PC’s back. It is a 9 pin D type male connector. In this case you have to make a RS232 to TTL converter and connect the MCU to COM port via it.
-
Connect to a Virtual COM Port.
-
Connect Via a Chip CP2102.
CP2102 is single chip USB to UART Bridge by SiLabs. This chip can be used to connect your embedded applications to USB port and enable them to transfer data with PC. It is the easiest path to build PC interfaced projects, like a PC controlled robot. We have a very good CP2102 module that can be used right out of the box. We have done all PCBs and fine SMD soldering for you.

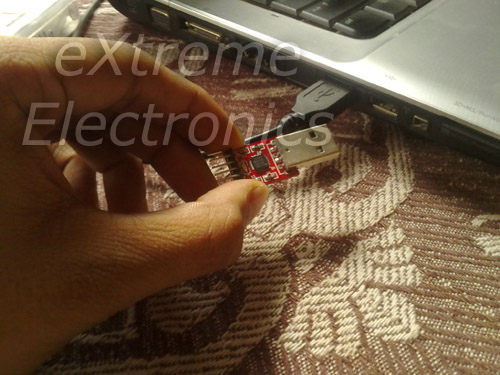

CP2102 Based Module.

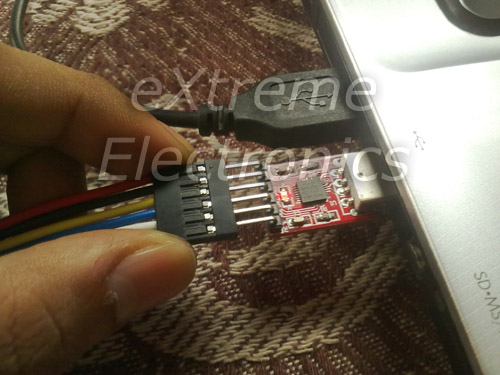

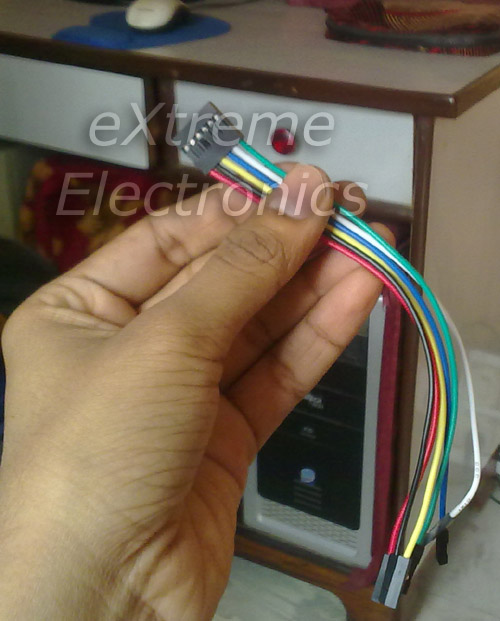

Female sides provide easy connection to headers.
xBoard MINI v2.0 with ATmega8 MCU

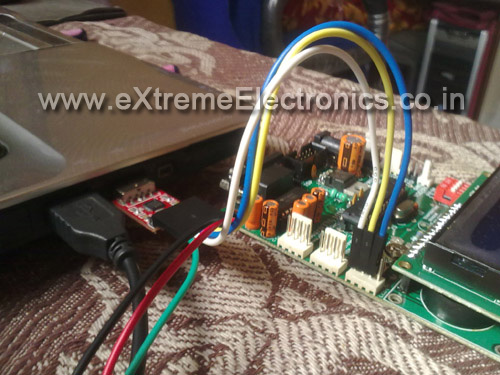

ATmega8 Connected to CP2102
-
Connect via Chip PL2303
PL2303 is yet another low cost chip for USB to serial (TTL Level) conversion. We also have a complete board for it too !
PL2303 based USB to USART Module

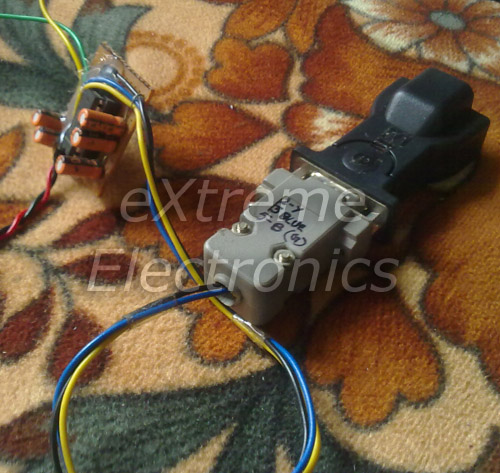

Those who are not so lucky may buy a Virtual COM port. Again in this case too you need to built a RS232 to TTL converter and connect the MCU to COM port via it.

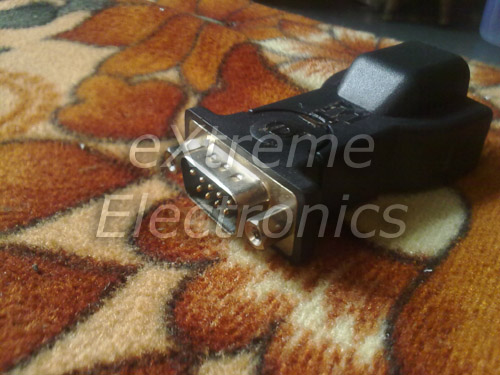

Fig. USB to Serial Converter
Finding the COM port number of Serial Port
A PC can have several COM ports, each may have some peripheral connected to it like a Modem. Serial Ports on PC are numbered like COM1, COM2 … COMn etc. You first need to figure out in which COM port you have connected the AVR. Only after you have a correct COM port number you can communicate with the AVR using tools such as Hyperterminal. The steps below shows how to get COM port number in case of Virtual COM Ports.
Right Click on "My Computer" icon in Windows Desktop.
 |
My Computer Icon on Windows Desktop |
Select "Properties"
 |
System Context Menu |
The System Properties will open up. Go to the "Hardware" Tab.
 |
System Properties. |
In Hardware tab select "Device Manager" button. It will open up device manager.
 |
Open Device Manager |
In Device Manager Find the Node "Ports (COM & LPT)"
 |
Expand the PORT node in Device Manager |
Depending on whether you are using a "USB to Serial Converter" or "CP2102 USB/USART Bridge Module" you have to find the port with following name.
- Prolific USB-to-Serial if you are using Bafo USB to Serial Converter.
- Silicon Labs CP210x if you are using CP2102 chip.
Note down the COM port number next to the port name. You need to open this Port in Hyperterminal.
 |
COM Port Number |
 |
COM Port Number |
Communication using a Terminal Program on PC.
Since this is the introductory article about serial communication, we won’t be going in much detail on PC end COM port programming. For this reason we will be using a ready made software for sending and receiving serial data. I will be showing how to use two different terminal program to exchange data with embedded application.
Windows Hyperterminal
This is a default terminal program shipped with Windows OS. You can start it from
Start Menu->All Programs->Accessories->Communication->Hyperterminal.
Hyperterminal is not available in Windows Vista or Windows 7 so you have to use other terminal programs like RealTerm.
On startup it will ask for a connection name. Here we will enter AVR
|
Create New Connection |
After that select a COM port you want to use. If you are using USB to serial adaptor please confirm which COM port number it is using. Other COM ports are usually connected to some device say an Internal modem etc. While some others are Bluetooth COM ports. Don’t use them. If you have a physical com port then most probably it will be COM1. If you select wrong COM port during this step you won’t be able to communicate with the AVR MCU and won’t get expected results.
|
Select COM Port |

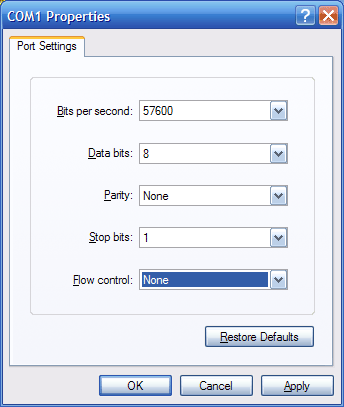

Now setup the COM port parameters as follows.
- Bits per second: 19200
- Data bits: 8
- Parity: None
- Stop bits: 1
- Flow Control: None
|
Setting up the COM port |
HyperTerminal is ready for communication now! If everything went right HyperTerminal and AVR will talk happily and AVR will send the following message as we have programmed it.
|
Screenshot of Hyperterminal Showing the message received from AVR |
If the screen shows similar message then you have successfully created a link between PC and your AVR micro. It shows that PC can read the data sent by AVR. To test if the AVR can also read Hyperterminal, press some keys on PC keyboard. Hyperterminal will send them over COM port to the AVR mcu where AVR will process the data. In the simple test program this processing includes returning the same data but enclosed inside [ and ], so if you press ‘k‘ then AVR will return [k]. If you are able to see this on PC screen then you are sure that AVR is receiving the data correctly.
That’s it! It fully tests the Serial Communication Routine and your hardware setup.
Setting Up Realterm and using it to communicate with AVR
If you are running Windows Vista or Windows 7 then the Hyperterminal Program may not be available. So in place of it you can use Realterm. It can be downloaded from here.
Start Realterm from its Desktop Icon. You will get a screen similar to this. Increase the Value of Row to 40 to see whole message.
|
Screenshot of Realterm Showing the message received from AVR |
Setup Realterm as follows. Go to the Port Tab and set it as follows.
- Baud: 19200
- Port: Port where you have connected the AVR
- Data bits: 8
- Parity: None
- Stop bits: 1
- Hardware Flow Control: None
|
Screenshot of Realterm Setup |
After setting up Realterm connect the AVR board with COM port and switch it on. Rest process is same as given above for Hyperterminal.
