Schematic (Circuit Diagram)

xBoard MINI v2.0

Easy to Use learning and development tool for Atmel AVR family of MCUs.



<< Return To Help Index

mega8 pin configuration

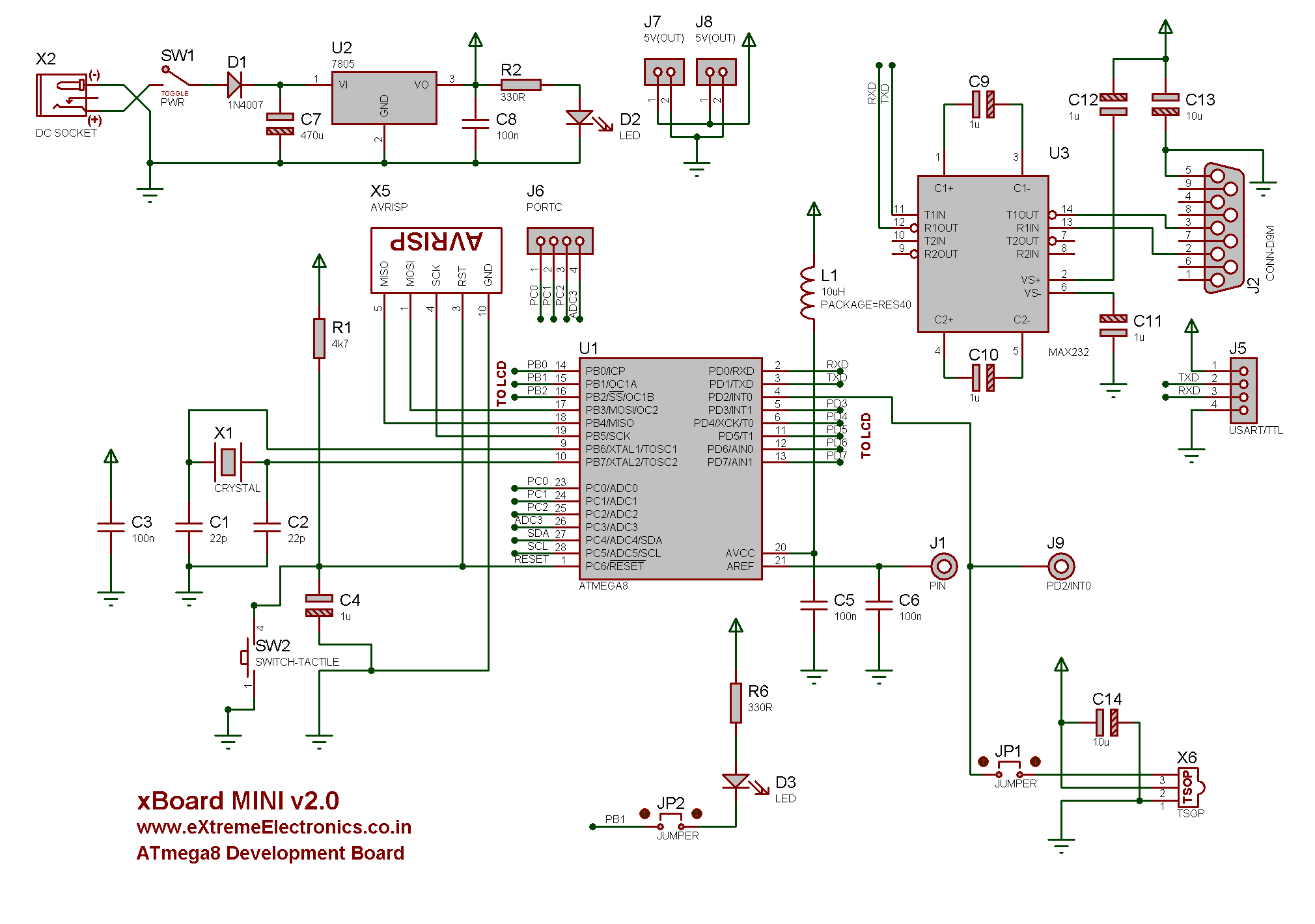

Fig - xBoard MINI Circuit Diagram - PAGE1 . (CLICK TO ENLARGE)



mega8 pin configuration

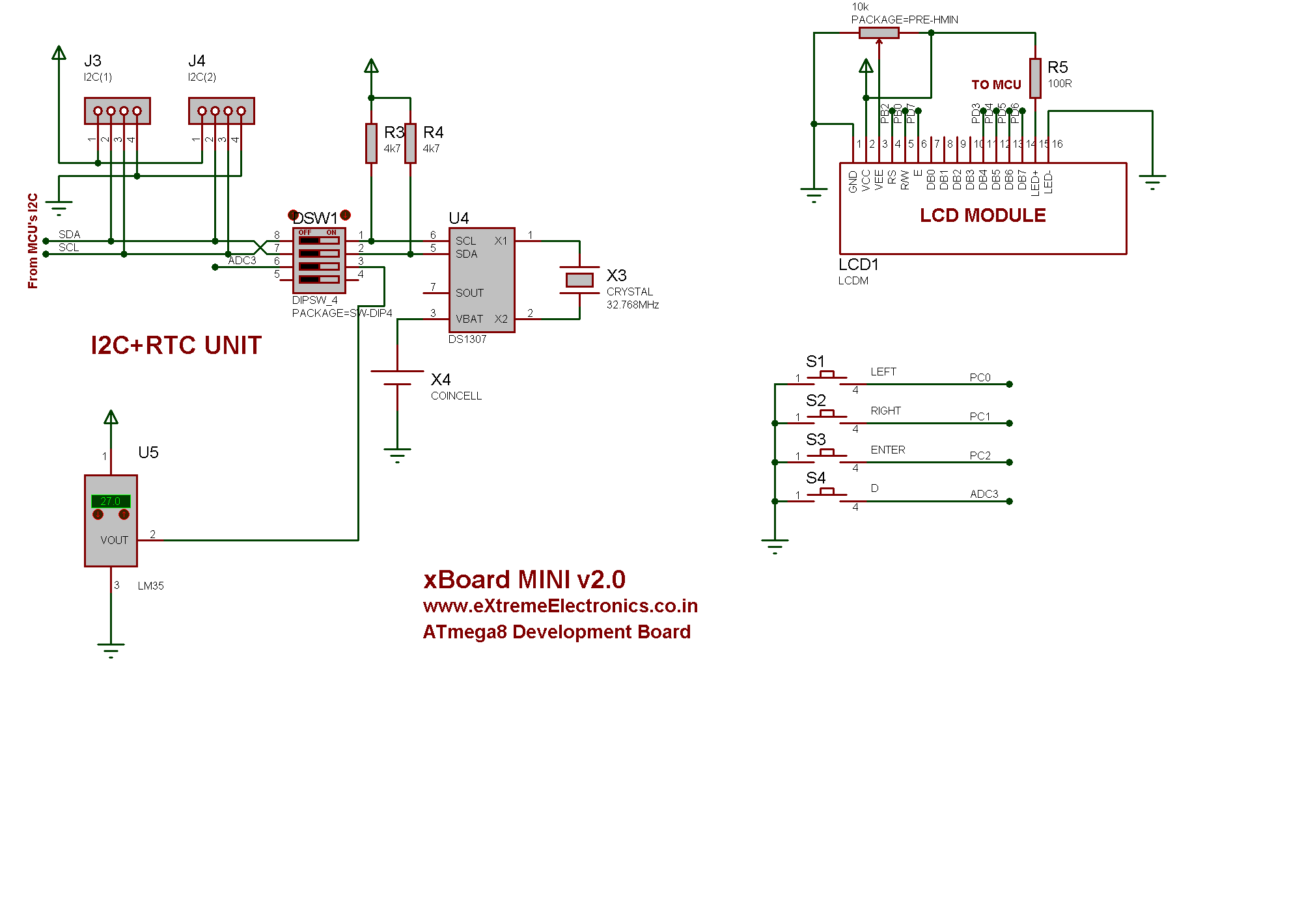

Fig - xBoard MINI Circuit Diagram - PAGE2 . (CLICK TO ENLARGE)
