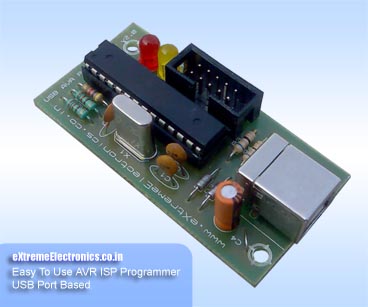

USB AVR Programmer v2.0

A complete solution for programming popular AVR series of micro controllers with ease. This is a USB based programmer. Many new computers and almost all laptops doesn't have a serial or parallel port, so hobbyist face a lot of problems because all easy to make programmers are either serial or parallel port based. Moreover, it is faster than those programmers so programming big MCUs is now a whole lot of fun. Can be used with Low Cost ATmega development board for quick and economical startup with AVR micros.

Supported Microcontrollers
1	AT901200	15	ATmega169
2	AT90S2313	16	ATmega32
3	AT90S2333	17	ATmega48
4	AT90S2343	18	ATmega64
5	AT90S4414	19	ATmega8
6	AT90S4433	20	ATmega8515
7	AT90S8515	21	ATmega8535
8	AT90S8535	22	ATmega88
9	ATmega103	23	ATtiny12
10	ATmega128	24	ATtiny13
11	ATmega16	25	ATtiny15
12	ATmega161	26	ATtiny2313
13	ATmega162	27	ATtiny26
14	ATmega163

It comes complete with a CD containing:

• Windows Drivers.
• Programmer Software (eXtreme Burner - AVR).
• Installation Guide.
• Troubleshooting Guide.
• Tutorials.

So you do not have to hunt for information every thing is there for a true out of the box performance.

Software Features

• Graphical User Interface (GUI) for ease of operation.
• Reading of On Chip Flash Memory,EEPROM Memory and Fuse Bits.
• Writing of On Chip Flash Memory,EEPROM Memory and Fuse Bits.
• Open/Save Hex file.
• Direct EEPROM area editing.
• Reliable Error Detection and Correction.
• Easy Installation.

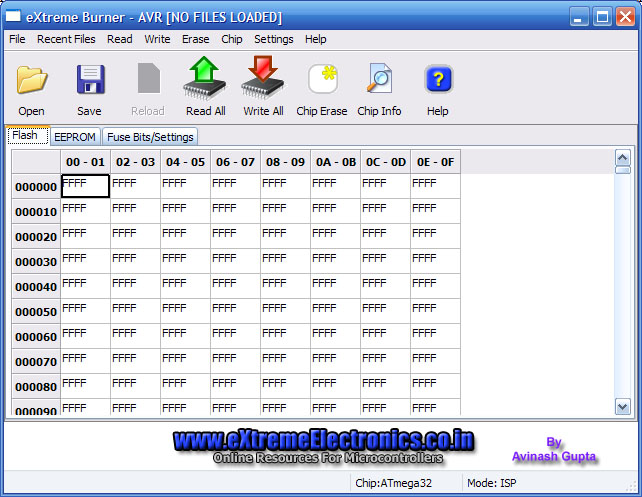

Fig.: eXtreme Burner - AVR, Main Screen

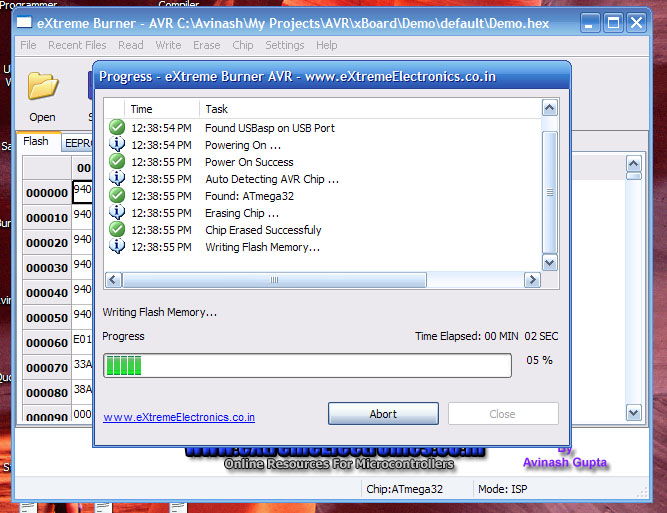

Fig.: eXtreme Burner - AVR, Burn Progress.



Requirements

• PC Running Windows
• Available USB port

Help and Support

• Installation Guide.
• Introduction to In Circuit Programming (ISP).
• Step By Step Tutorial.

Download

• Download eXtreme Burner - AVR v1.0 for Microsoft® Windows® XP® or Better.
