Introduction to AVR Microcontrollers

NOTE: To learn AVR Microcontrollers and do hands on experiments at home you can purchase xBoard. It is a low cost development board designed to get started with minimum efforts and to easily perform common tasks. Lots of sample programs helps you easily complete projects. It is a must have tool if you want to do something real and instead of just wasting time just trying to achieve basic things and avoid problems that dont let you move forward to the real task.
Buy xBoard NOW !
Free shipping across India ! Pay Cash on Delivery ! 15 Days Money Back!

Just what is a microcontroller?

To get you understand quickly I define a microcontroller as a single chip computer. Yes it is a full blown computer in its own. It has a C.P.U., RAM, some amount of EEPROM (for secondary storage i.e. permanent storage without power), many on-chip peripherals(Timer,Serial communication, Analogue to Digital converters etc.). If you don’t understand, no problem I will be dealing them in detail in next tutorials.

But compared to a P.C. their resources(RAM,speed etc)are less. But that is what is required ! Because P.C. is a general purpose computer, which means it can run thousands of different software that are available for specific needs. Like it can run a game. The same P.C. can run this browser in which you are reading this! It can run a custom solution for banks,railways and airways. It can run a 3D modeling, video editing & image editing software for a production company. Many of these are huge software,requiring lots of memory and CPU power. And a P.C. can run simultaneously many of these ! So to run them the host computer should have enough RAM and CPU power so that it can run heaviest of them.

But in case of a microcontroller(aka MCU) which is used for a specific purpose like switching a Microwave oven heating off after a preset time, and also turn it off when temperature exceed preset value.



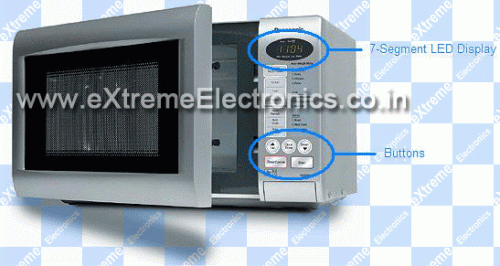

A Typical MCU based solution.





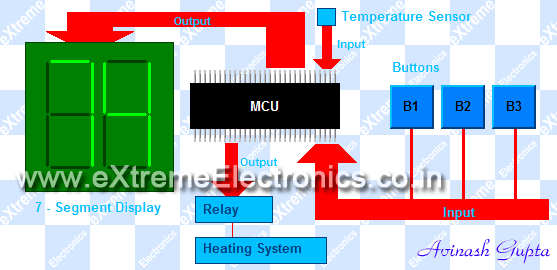

Block diagram



This design also involve controlling few indicator L.E.D. , 2 or 3 seven segment display, few switches and a relay controlling the oven. This doesn’t need a monster with 3.2 GHz Intel Core 2 Quad extreme processor with 2 GB Dual channel DDR3 RAM, 320 GB HDD and Dedicated nVIDIA GEFORCE graphics !. What is of main concern is cost and size. What it will be running through out it’s life is a simple program that is hardly more than 4KB in size, requiring less than 128 Bytes of RAM to store few variables and optionally a few bytes to store permanently the temperature and time set on last use so that it can read those on startup. Other examples where MCUs are used …

  • Pen drives(for controlling the communication between P.C. and Flash Chip and also the small LED!)
  • Hard disks( again for the same purpose)
  • Mouse(Reads and Interprets the Sensors and send final result to P.C.),Keyboards
  • Printers : Ever opened a printer for installing ink cartridge ? Then you must have seen the printed head. There are motors to control the print head and the paper movement. Your P.C. is not directly connected to them but their is built in MCU inside the printer control all these. Your P.C. just sends the data(pixels) through the communication line(USB or parallel).But the MCU used here is fairly fast and has lots of RAM.
  • Automobiles.
  • Calculators,Electronic wending machines, Electronic weighing scales, Phones(digital with LCD and phone book)
  • Cell phones.
  • Robots.
  • Any thing that is small, but has great functions and is cheap !

They are every where !

A Simple MCU based system.

A simplest MCU system may look like below

The program it is executing is like this( In C language).The MCU contains a flash memory where it stores its program(its like a hard disk to it). The flash memory can be easily erased and a new program can burned. This makes them very flexible. MCUs can be programmed few thousand times before they die.

A Simple MCU Based System

A Sample Program

void main()

{

    SetPortDirection();

    while(1)

    {

        PORTA=0b00000001;

        Delay(0.5);

        PORTA=0b00000000;

        Delay(0.5);

    }

}



Microcontroller’s PORTs

A MCU has some ports. Ports are PINs on the MCU that can be turned on and off by program. By on I mean 5V and off means 0V or GND.

This behavior is for OUTPUT mode. They can also be put in INPUT mode. In INPUT mode they can read what is the signal level on them (only on and off). If voltage is more than a threshold voltage(usually half the supply) it is reported as ON(1) otherwise OFF(0). This is how MCU control everything .

Majority of the PINs of a MCU are PORT so you can hookup lots of gizmos to it ! They are named PORTA,PORTB,PORTC,PORTD etc. They are of one byte length, which means 8 Bits. All bits of them are connected to external pins and are available outside the chip. In smaller chips only some of the eight bits are available.

For example the image shows the PORTB and it bit numbering. Setting PORTB=0b00000001 will set PORTB’s zeroth bit high that is 5V while remaining PINs will be low(GND). [NOTE:To write a binary number in c prefix it with 0b ex 0b00001000. It is decimal 8 not 1000 !]

The program above is not complete program, it is just a pseudo-code. So it won’t compile. Also you may be wondering where it will be entered, compiled and how the heck it will pushed into that chip? They are the subject of next tutorials and I will be covering them in detail.



What the program does

STEP 1 SetPortDirection(); This Function Makes the PORTB as OUTPUT. Its implementation detail is not shown.

STEP 2 PORTB=0b00000001; makes the 0th bit high, switching off the L.E.D. because other end of LED is connected to VCC(i.e. Supply voltage 5V)

STEP 3 Delay(0.5); Halts the MCU for 0.5 Sec.

STEP 4 PORTB=0b00000000; Switches on the LED

STEP 5 Delay(0.5);

STEP 2 to 5 are within an infinite while loop so it runs till MCU is powered. The program is compiled, and burned into the chip and power is turned on and woillaaaa that LED is blinking once every second. You have just understood the “HELLO WORLD” program for MCU empire. Although the given program doesn’t do something very important and can be done without a MCU and in a cheap manner, but it introduce you to microcontroller programming.

Doing this with MCU has some advantages also. You can change the way LED blinks by simply writing a new program without touching the hardware part. You can also connect 8 LEDs to all 8 PINs of the PORTB, write a nice program to light them in various pattern and you have a deluxe decorating lights ! Which you can’t make easily without MCUs.

So you have seen that major functioning of a MCU project are made in software and hardware part is simple and small. Now you have learned the basics of MCUs and their use. Hope you have nice time reading.
